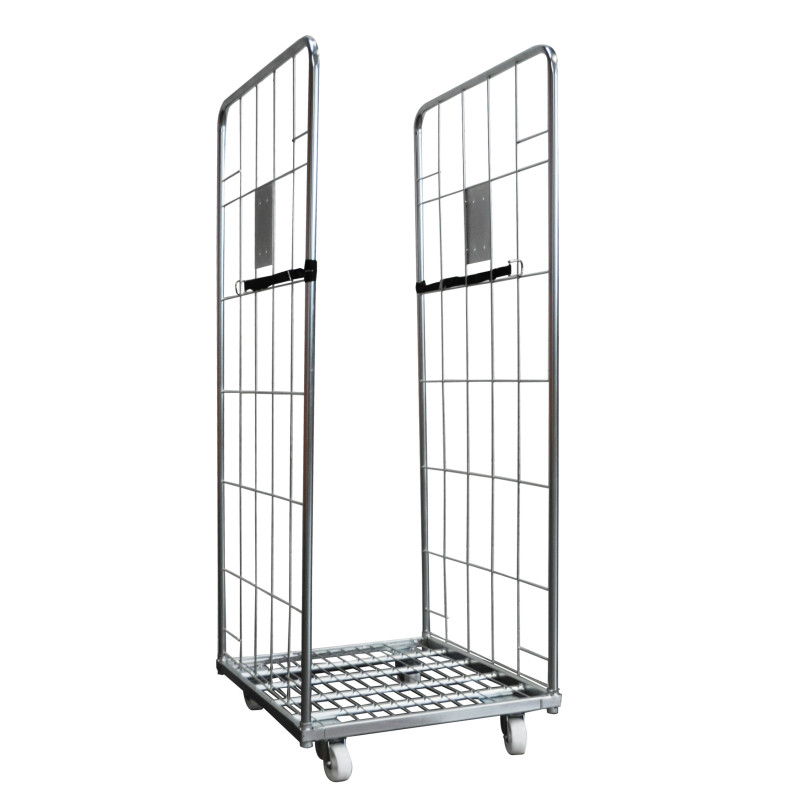

2 SIDED ROLL CAGE BIG VOLUME (HIGH)
This rollcage, in the format of a pallet, is ideally suited for transporting light bulky products.
Application areas : furniture, decoration, bric-a-brac shops, textiles, lighting, etc.
You can add shelves in order to have different layers.
Remember to complete your Roll with an Anti-Fall Flap (AFC) which will help to keep the goods in place during transport. The AFC is ecological, it avoids the use of film and is ergonomic, you close the AFC in a single gesture.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 33 kg (H 1500 mm) & 36 kg (H 1700 mm)
Textile straps provided: no
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Number of horizontal wires / side panels: 15 (ref. 0321) / 18 (ref. 0322)
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 100 x 160 mm
Label holder: no
Data sheet
- Ext width
- 1195 mm
- Ext depth
- 805 mm
- Ext height
- 1920 mm
- Int width
- 1125 mm
- Int depth
- 730 mm
- Int height
- 1700 mm
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 33 kg (H 1500 mm) & 36 kg (H 1700 mm)
Textile straps provided: no
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Number of horizontal wires / side panels: 15 (ref. 0321) / 18 (ref. 0322)
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 100 x 160 mm
Label holder: no
