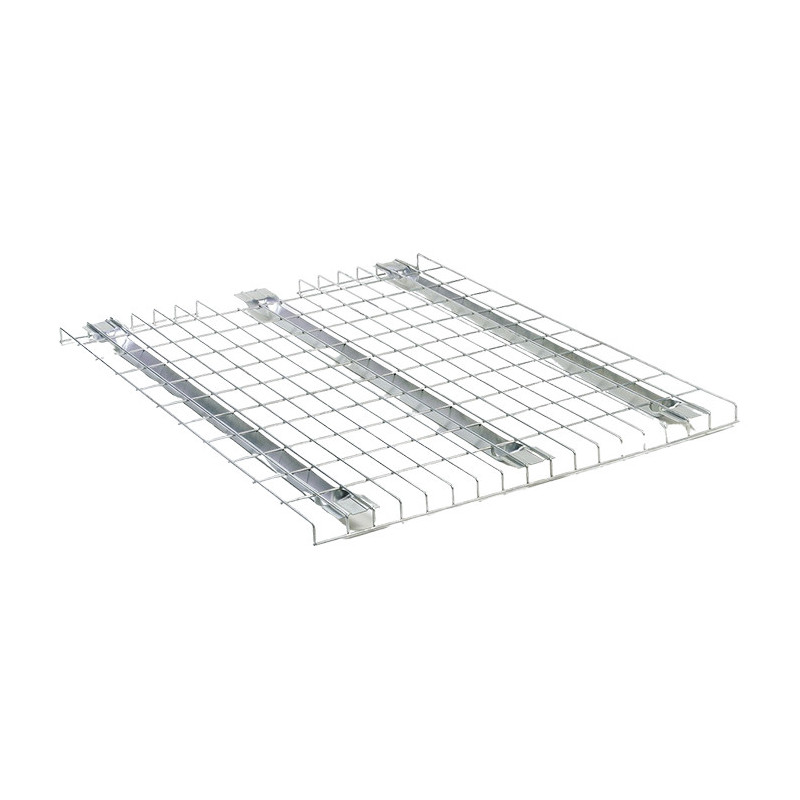

WAREHOUSE STORAGE GALVANIZED STEEL METAL WIRE MESH DECKING PANEL SHELVING RACK

Wire decking designed to ANSI MH26.2 Standard!
Wire decking for all types of heavy or semi-heavy shelving. With these Deckings, the positioning of the pallets is easier and the safety of the “deck” aisles is guaranteed! They meet APSAD hygiene and safety standards and have a Uniformly Distributed Load between beams (CUR).

2 loads are available for this range of wire decking – 3 Reinforcements – Waterfalls:
500 Kg:
Mesh 100 x 50 mm
600 x 880 mm (Ref. 1000347)
800 x 880 mm (Ref. 1000348)
600 x 1090 mm (Ref. 1000364)
800 x 1090 mm (Ref. 1000365)
Mesh 125 x 50 mm
1000 x 880 mm (Ref. 1000343) + (also available with rear cutout for stop Ref. 1000342)
1050 x 880 mm – with rear cutout for stopper ONLY (Ref. 1000344)
1100 x 880 mm (Ref. 1000346) + (also available with rear cutout for stop Ref. 1000345)

800 Kg:
Mesh 100 x 50 mm
900 x 880 mm (Ref. 1000366)
1200 x 880 mm (Ref. 1000362)
900 x 1090 mm (Ref. 1000367)
1000 x 1090 mm (Ref. 1000357) + (also available with rear cutout for stop Ref. 1000356)
1050 x 1090 mm (Ref. 1000359) + (also available with rear cutout for stop Ref. 1000358)
1100 x 1090 mm (Ref. 1000361) + (also available with rear cutout for stop Ref. 1000360)
1000 x 880 mm (Ref. 1000351) + (also available with rear cutout for stop Ref. 1000350)
1050 x 880 mm (Ref. 1000353) + (also available with rear cutout for stop Ref. 1000352)
1100 x 880 mm (Ref. 1000355) + (also available with rear cutout for stop Ref. 1000354)
1200 x 1090 mm (Ref. 1000363)
