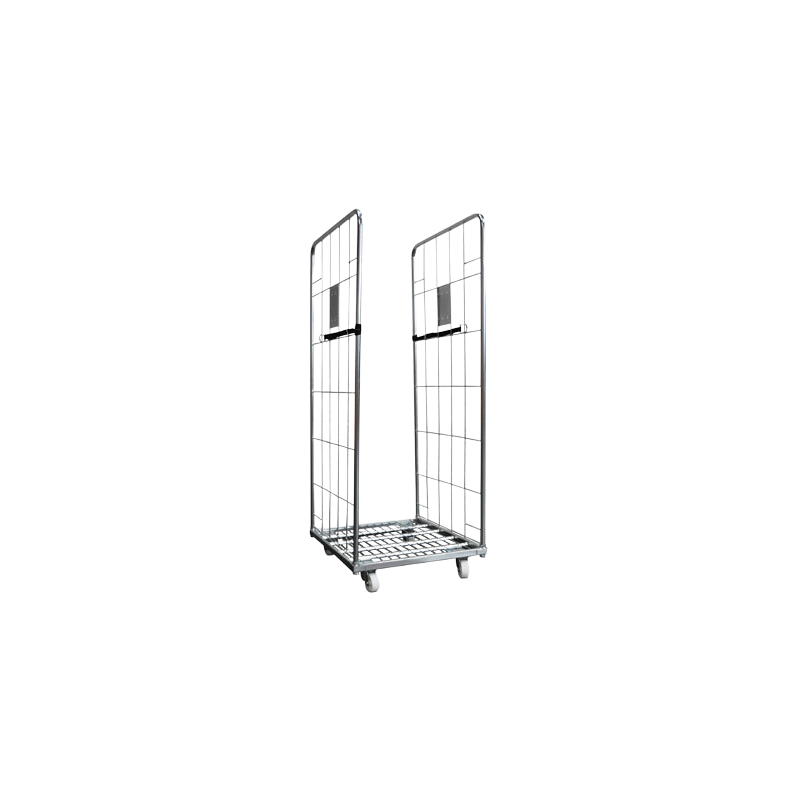

2 SIDED ROLL CAGE SMALL MESH (SMALL)
Internal handling trolley for transferring and storing small parts. Its mesh allows modular, multi-level use by inserting shelves.
Application areas: automotive, pharmaceutical, electrical, plumbing, hardware, etc.
All special requests for a product in the category are analyzed by our Design Department.
Coating: Electro galvanized CR3
Service load: 500 Kg
Average weight: 26 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Number of horizontal wires / side panels: 18
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Additional dimension of identification plate 100 x 160 mm
Data sheet
- Ext width
- 720 mm
- Ext depth
- 805 mm
- Ext height
- 1700 mm
- Int width
- 645 mm
- Int depth
- 800 mm
- Int height
- 1480 mm
Coating: Electro galvanized CR3
Service load: 500 Kg
Average weight: 26 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Number of horizontal wires / side panels: 18
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Additional dimension of identification plate 100 x 160 mm
