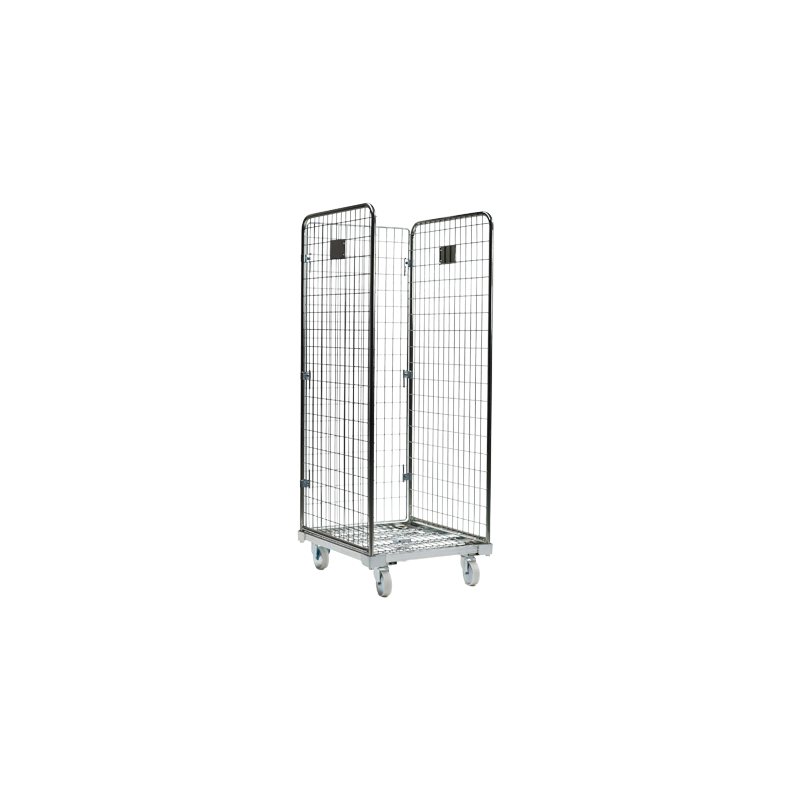

3 SIDED ROLL CAGE SMALL MESH
This trolley is ideal for internal use – storing or handling small parts and small packages.
Application areas: administration, archiving, hardware store, drugstore etc.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 45 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Number of horizontal wires / side panels: 18 (ref. 0311) / 16 (ref. 0310)
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Additional dimension of identification plate 100 x 160 mm
Data sheet
- Ext width
- 720 mm
- Ext depth
- 805 mm
- Ext height
- 1910 mm
- Int width
- 645 mm
- Int depth
- 785 mm
- Int height
- 1700 mm
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 45 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Number of horizontal wires / side panels: 18 (ref. 0311) / 16 (ref. 0310)
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Additional dimension of identification plate 100 x 160 mm
