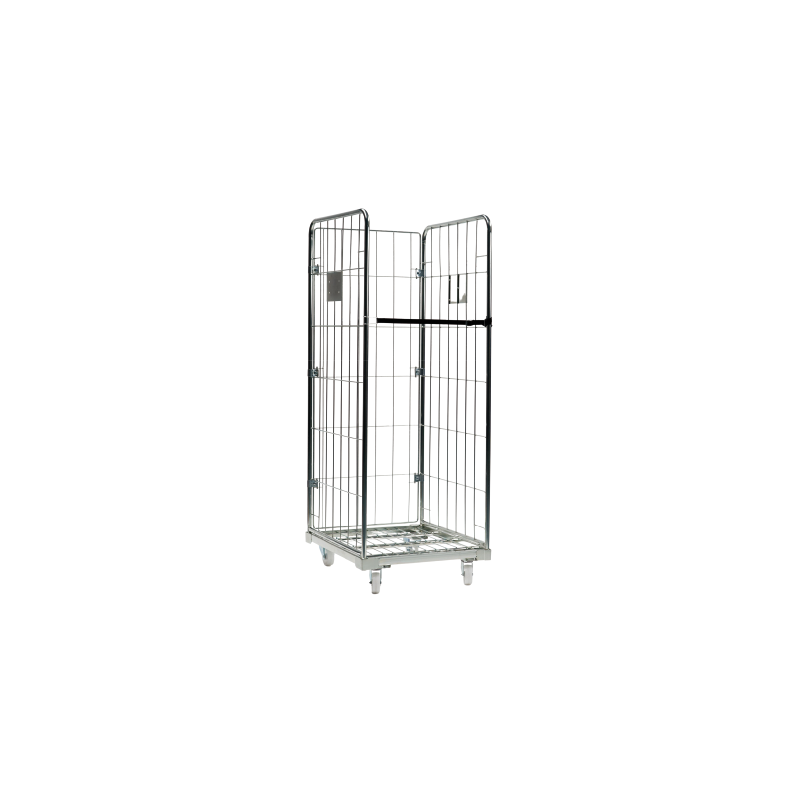

3 SIDED ROLL CAGE LARGE MESH
This Rollcage is ideally suited for the internal transport of goods with or without pallet trucks.
Application areas : spare parts and manufacturing industry, recycling…
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electro galvanised CR3
Service load: 500 Kg
Average weight: 29 Kg (1600 mm) – 30 Kg (1700mm)
Non-mounted textile strap: 1
Sides:
Mesh of side panels: 280 x 105 mm
Bottom mesh: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 180 mm
Mesh of the base: 60 x 237 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 100 mm
Plates / Label Holders:
Additional dimension of identification plate 150 x 215 mm
Data sheet
- Ext width
- 720 mm
- Ext depth
- 805 mm
- Ext height
- 1785 mm
- Int width
- 645 mm
- Int depth
- 780 mm
- Int height
- 1600 mm
Material / Coating: Electro galvanised CR3
Service load: 500 Kg
Average weight: 29 Kg (1600 mm) – 30 Kg (1700mm)
Non-mounted textile strap: 1
Sides:
Mesh of side panels: 280 x 105 mm
Bottom mesh: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 180 mm
Mesh of the base: 60 x 237 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 100 mm
Plates / Label Holders:
Additional dimension of identification plate 150 x 215 mm
