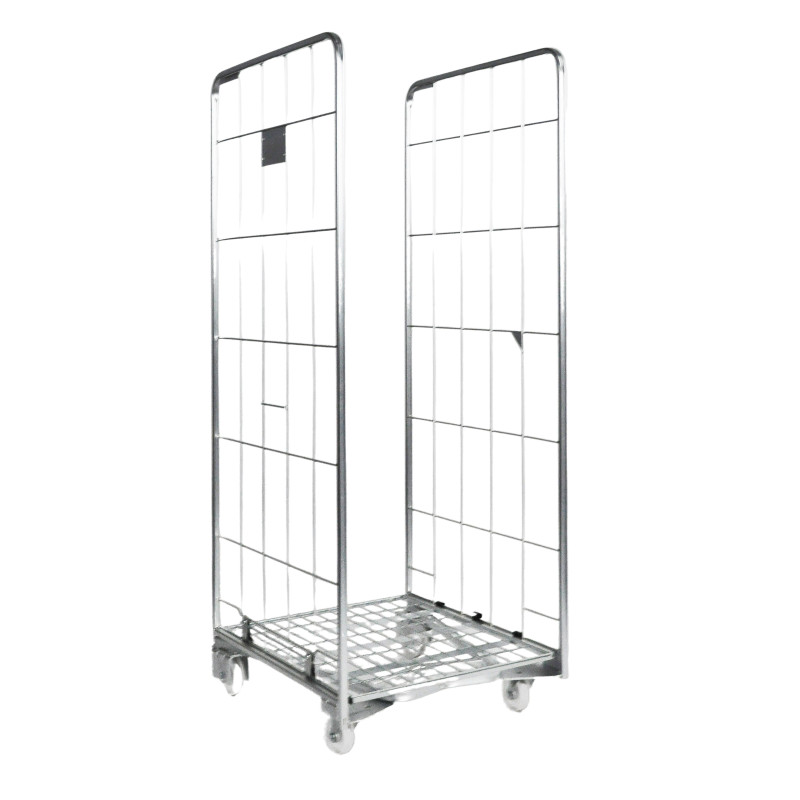

2 SIDED NESTABLE ROLL CAGE
Its nestable function saves space.
The areas of application of this Roll trolley are the following: sales areas, distribution centers, logistics platforms, warehouses, reserves…
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electrogalvanised CR3
Service load: 500 Kg
Average weight: 42 Kg
Sides:
Panel mesh : 135 x 145 mm
½ shelves:
Nb. of ½ shelves : 2
Service load : 75 kg by ½ shelf
Specificity : plastic protection on hooks and articulations
Base:
Height base / floor : 190 mm
Base mesh : 65 x 90 mm
Specificity : plastic protection on hooks and articulations
Wheels:
2 fixed wheels – 2 swivel wheels
Wheels material : sandwich PA or PP
Wheels diameter : Fixed at rear 125 mm – swivel at front diam. 100 mm
Plates / Label Holders:
Bar code support : 12 x 180 mm
Label-holders : 140 x 150 mm
Data sheet
- Ext width
- 720 mm
- Ext depth
- 826 mm
- Ext height
- 1880 mm
- Int width
- 662 mm
- Int depth
- 800 mm
- Int height
- 1689 mm
Material / Coating: Electrogalvanised CR3
Service load: 500 Kg
Average weight: 42 Kg
Sides:
Panel mesh : 135 x 145 mm
½ shelves:
Nb. of ½ shelves : 2
Service load : 75 kg by ½ shelf
Specificity : plastic protection on hooks and articulations
Base:
Height base / floor : 190 mm
Base mesh : 65 x 90 mm
Specificity : plastic protection on hooks and articulations
Wheels:
2 fixed wheels – 2 swivel wheels
Wheels material : sandwich PA or PP
Wheels diameter : Fixed at rear 125 mm – swivel at front diam. 100 mm
Plates / Label Holders:
Bar code support : 12 x 180 mm
Label-holders : 140 x 150 mm
