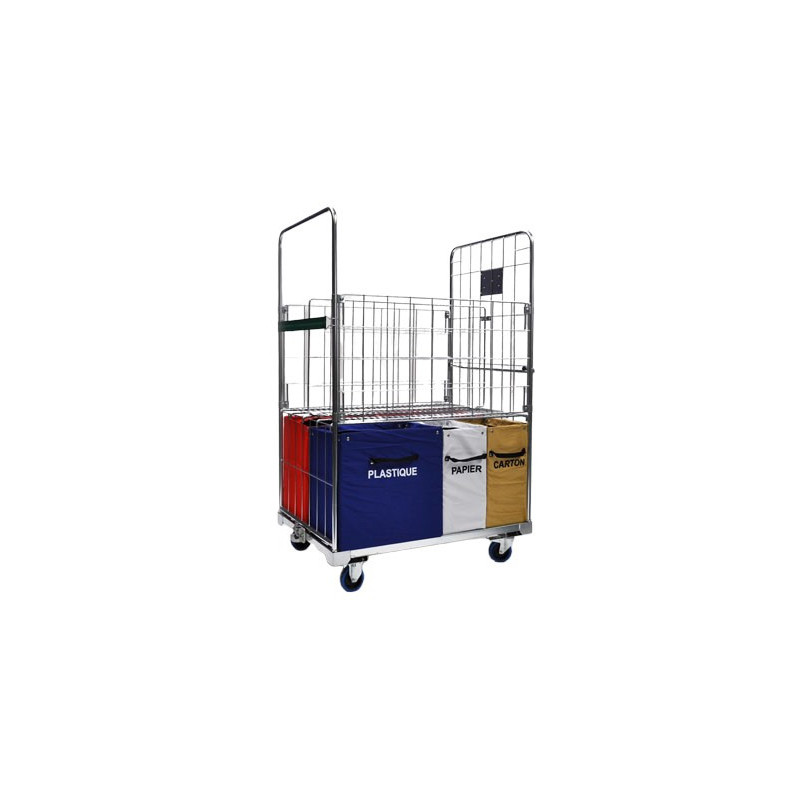

ROLL CAGE BIG VOLUME FOR RECYCLING
This rollcage allows the collection, transportation and storage of bulky material which is to be recycled.
It has a payload of up to 500 kg.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electrogalvanised CR3
Service load: 500 Kg
Average weight: 61 Kg
Sides:
Mesh of side panels: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: rubber
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 150 x 215 mm
Options:
Identification plate
Brake wheels
Signage by micro-percussion
Data sheet
- Ext width
- 1370 mm
- Ext depth
- 805 mm
- Ext height
- 1830 mm
- Int width
- 1135 mm
- Int depth
- 750 mm
- Int height
- 1610 mm
Material / Coating: Electrogalvanised CR3
Service load: 500 Kg
Average weight: 61 Kg
Sides:
Mesh of side panels: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: rubber
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 150 x 215 mm
Options:
Identification plate
Brake wheels
Signage by micro-percussion
