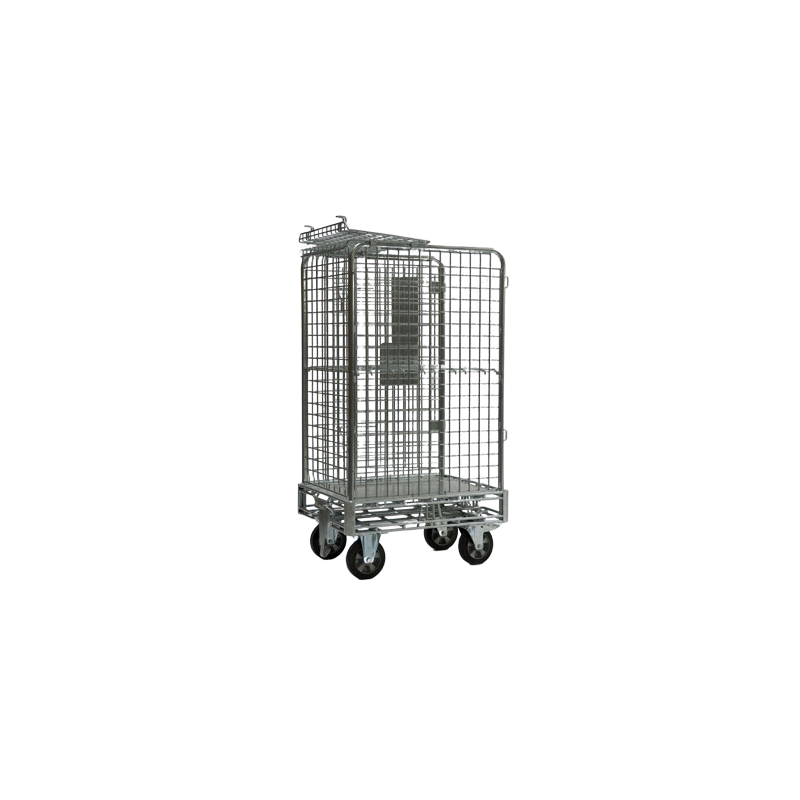

NEWSPAPER, PRESS ROLL CAGE
This rollcage trolley was specifically designed for transporting and distributing magazines, newspapers, books and advertising flyers. It can support very heavy loads.
A train of rollcages can be made thanks to its hook and drawbar.
Application areas : general and specialised press, advertising, publishing, printing, etc.
All special requests for a product in the category are analyzed by our Design Department.
Hook + Drawbar
Material / Coating: Electro galvanized white varnish
Service load: 700 Kg
Average weight: 110 Kg
Textile straps provided: no
Sides + Roof:
Mesh of side panels: 57 x 60 mm
Bottom mesh: 57 x 60 mm
Number of horizontal wires / side panels: 19
Number of vertical wires / side panels: 13
Base:
Material / Base coating: Metal
Height of base / floor: 390 mm
Mesh of the base: 110 x 150 mm
Wheels:
Material of wheels: rubber
Wheel diameter: 200 mm
Plates / Label Holders:
Support of identification plate: 150 x 350 mm
Label holder: 210 x 240 mm
Data sheet
- Ext width
- 700 mm
- Ext depth
- 905 mm
- Ext height
- 1660 mm
- Int width
- 615 mm
- Int depth
- 810 mm
- Int height
- 1245 mm
