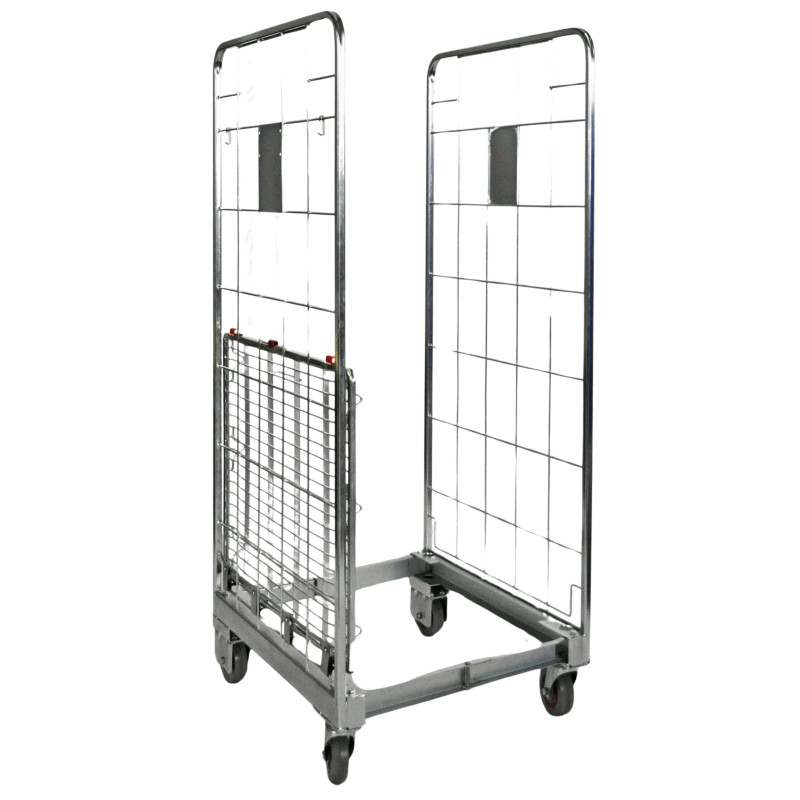

2 SIDED FOLDABLE ROLL CAGE
SUFILOG offers you foldable Roll as an ally for your professional events (trade shows, ephemeral exhibitions, …).
The Anti-Falling Shutters option is available on this product model, thus guaranteeing you additional security.
Foldable Roll is therefore a safe bet when traveling.
All special requests for a product in the category are analyzed by our Design Department.
Coating : Electro galvanised
Service load : 500 kg
Average weight : 32 kg
SIDES :
Side wire diameter : Ø 6,8mm
Side tube diameter : carré 22 x 22mm
Side tube thickness : 1,6mm
Panel mesh : 150 x 210 mm
Base mesh : 150 x 200 mm
Valve : no
Nb of horizontal wires /side : 6
Nb of vertical wires / side : 4
BASE :
Base coating : Metal
Base wire diameter : Ø 5,8 mm – tube 15 x 15 mm
Height base / floor : 250 mm
Base mesh : 165 x 30 mm
WHEELS:
Coating wheels : sandwich polyamide
Wheels diameter : 2 fixed wheels Ø125mm
2 swivel wheels Ø100mm
PLATES / LABEL-HOLDERS :
Identification plate support : 155 x 217mm
Data sheet
- Ext width
- 700 mm
- Ext depth
- 800 mm
- Ext height
- 1800 mm
- Int width
- 656 mm
- Int depth
- 800 mm
- Int height
- 1550 mm
Coating : Electro galvanised
Service load : 500 kg
Average weight : 32 kg
SIDES :
Side wire diameter : Ø 6,8mm
Side tube diameter : carré 22 x 22mm
Side tube thickness : 1,6mm
Panel mesh : 150 x 210 mm
Base mesh : 150 x 200 mm
Valve : no
Nb of horizontal wires /side : 6
Nb of vertical wires / side : 4
BASE :
Base coating : Metal
Base wire diameter : Ø 5,8 mm – tube 15 x 15 mm
Height base / floor : 250 mm
Base mesh : 165 x 30 mm
WHEELS:
Coating wheels : sandwich polyamide
Wheels diameter : 2 fixed wheels Ø125mm
2 swivel wheels Ø100mm
PLATES / LABEL-HOLDERS :
Identification plate support : 155 x 217mm
