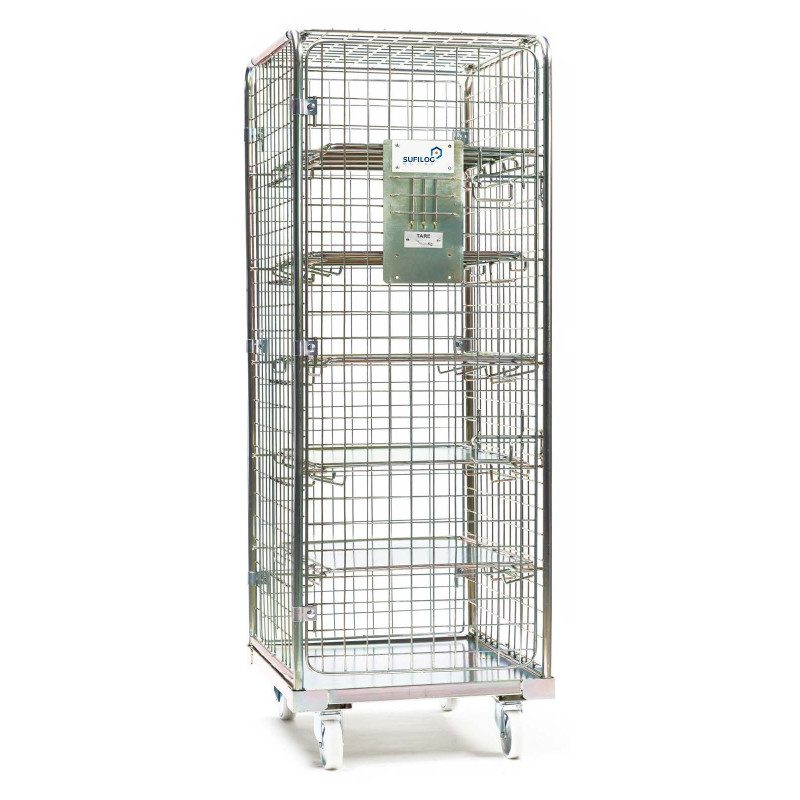

SECURITY MEAT ROLL CAGE
This Roll Meat is a must in the food industry.
With 5 full folding shelves that accommodate all types of meat trays, vacuum or on the shelf.
Our meat rollers are widely used by slaughterhouses, cured meat, meat cutting industries and communities.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electrogalvanised CR3
Service load: 500 Kg
Average weight: 90 Kg
Sides:
Mesh of side panels: 58 x 67 mm
Bottom mesh: 58 x 67 mm
Mesh of roof : 58 x 67 mm
Door mesh: 58 x 67 mm
Number of horizontal wires / side panels: 23
Number of vertical wires / side panels: 11
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Additional dimension of identification plate 210 x 365 mm
Label holder dimensions: A5
Shelves:
Material: Metal
Shelf dimension: 540 x 655 mm
Shelf mesh: Sheet metal
Shelf service load: 100 Kg
Weight of removable shelf: 6 Kg
Quantity of shelves: 5 + tray on the base
Height between shelves: 265 mm
Data sheet
- Ext width
- 690 mm
- Ext depth
- 780 mm
- Ext height
- 1880 mm
- Int width
- 615 mm
- Int depth
- 730 mm
- Int height
- 1655 mm
