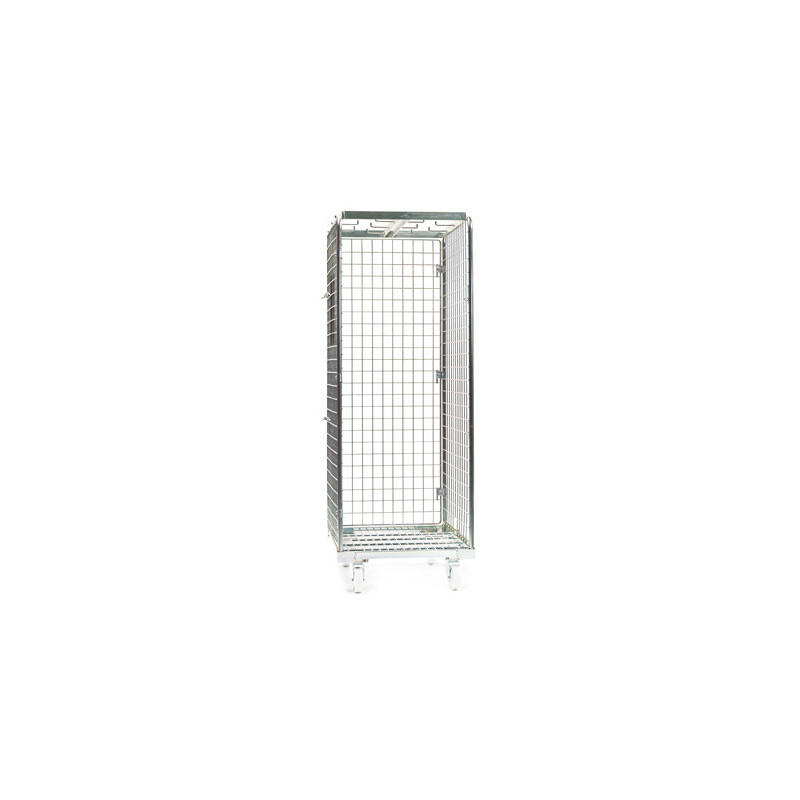

MEAT TROLLEY ROLL CAGE WITH HOOKS AND WITHOUT ROOF
This trolley roll container without roof can hang long pieces of meat of veal, pork, beef.
Equipment widely used in slaughterhouses and meat cutting which allows the goods to be safely transported.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Cr3 electro galvanized
Service load: 500 Kg
Average weight: 65 Kg
Sides:
Mesh of side panels: 58 x 67 mm
Bottom mesh: 58 x 67 mm
Door mesh: 58 x 67 mm
Number of horizontal wires / side panels: 23
Number of vertical wires / side panels: 11
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
Material of wheels: polypropylene
Wheel diameter: Ø 125 mm
Plates / Label Holders:
Additional dimension of identification plate 210 x 365 mm
Label holder dimensions: A5
Hooks:
Quantity of hooks: 12
Height under hook: 1650 mm
Data sheet
- Ext width
- 690 mm
- Ext depth
- 780 mm
- Ext height
- 1880 mm
- Int width
- 615 mm
- Int depth
- 730 mm
- Int height
- 1655 mm
Material / Coating: Cr3 electro galvanized
Service load: 500 Kg
Average weight: 65 Kg
Sides:
Mesh of side panels: 58 x 67 mm
Bottom mesh: 58 x 67 mm
Door mesh: 58 x 67 mm
Number of horizontal wires / side panels: 23
Number of vertical wires / side panels: 11
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 40 x 150 mm
Wheels:
Material of wheels: polypropylene
Wheel diameter: Ø 125 mm
Plates / Label Holders:
Additional dimension of identification plate 210 x 365 mm
Label holder dimensions: A5
Hooks:
Quantity of hooks: 12
Height under hook: 1650 mm
