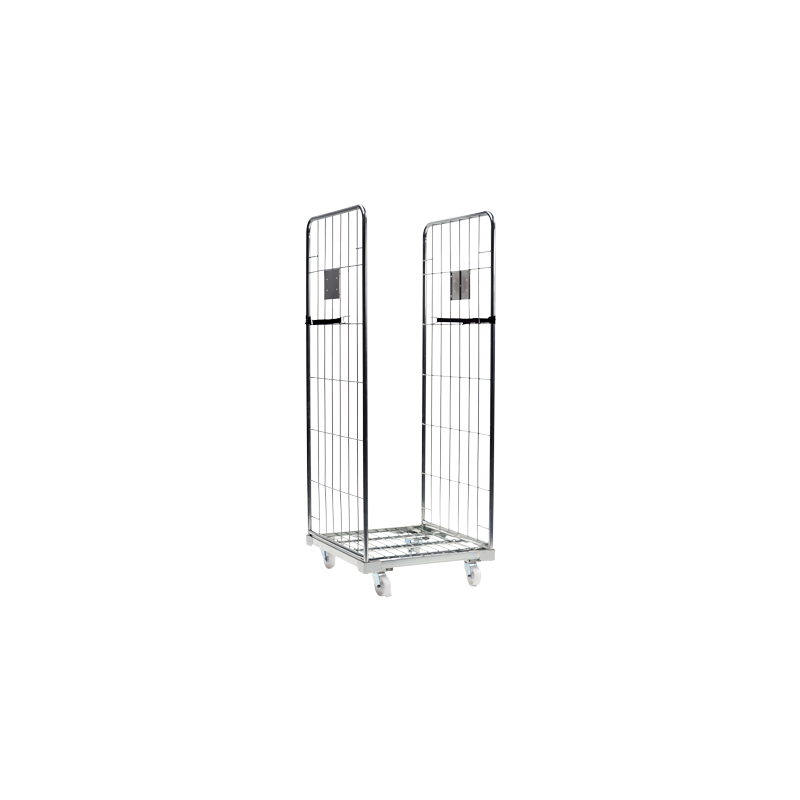

2 SIDED ROLL CAGE LARGE MESH
This standard wheeled trolley is perfect for formulating orders being prepared, for picking, and for distributing products from the platform to shops. It can also be used in all logistics and goods flows.
Application areas: hypermarkets and supermarkets, warehouses/logistics centres, local shops, etc.
Do not hesitate to add a 3rd removable side to your Roll 2 sides to obtain a better maintenance of the goods.
All special requests for a product in the category are analyzed by our Design Department.
Coating: Electro galvanized CR3
Service load: 500 Kg
Average weight: 25 Kg (1600 mm) – 26 Kg (1700mm)
Non-mounted textile straps: 2
Sides:
Mesh of side panels: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 180 mm
Mesh of the base: 60 x 237 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 100 mm
Plates / Label Holders:
Additional dimension of identification plate 150 x 215 mm
Data sheet
- Ext width
- 720 mm
- Ext depth
- 805 mm
- Ext height
- 1785 mm
- Int width
- 645 mm
- Int depth
- 800 mm
- Int height
- 1600 mm
Coating: Electro galvanized CR3
Service load: 500 Kg
Average weight: 25 Kg (1600 mm) – 26 Kg (1700mm)
Non-mounted textile straps: 2
Sides:
Mesh of side panels: 280 x 105 mm
Number of horizontal wires / side panels: 5
Number of vertical wires / side panels: 6
Base:
Material / Base coating: Metal
Height of base / floor: 180 mm
Mesh of the base: 60 x 237 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 100 mm
Plates / Label Holders:
Additional dimension of identification plate 150 x 215 mm
