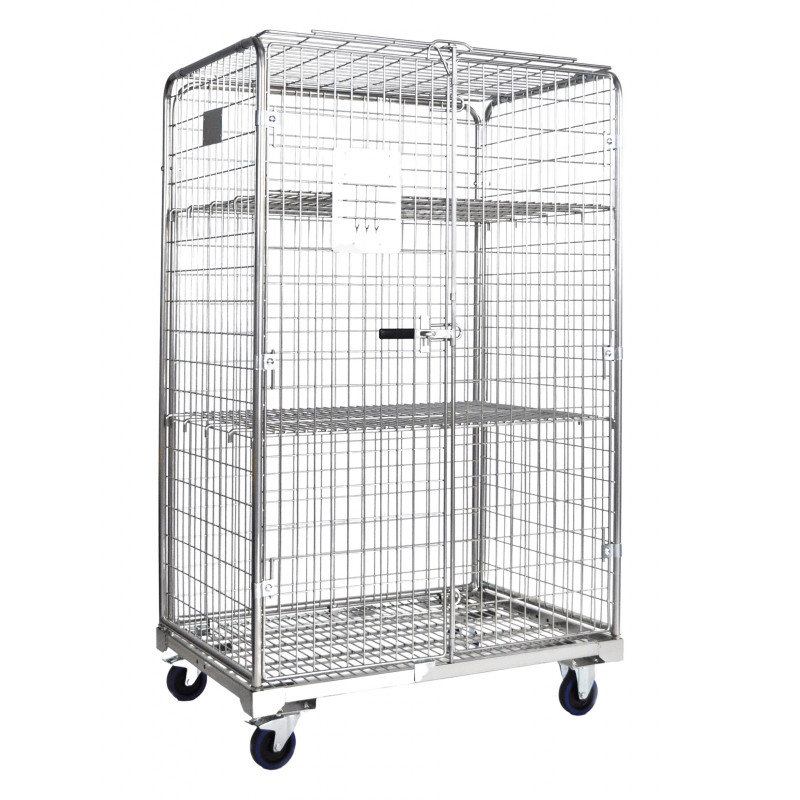

SECURITY ROLL CAGE BIG VOLUME
This secure Roll container trolley allows the transport of more or less voluminous products closed by a padlock or a seal.
Equipped with an optional drawbar, this Roll can thus be towed.
The fields of application of our large volume safety Roll container trolleys are as follows: stereo, household appliances, etc.
Do not forget to combine large format shelves that will allow you to organize the storage of products inside. Using the claws, easily arrange your shelves at different levels according to your needs.
All special requests for a product in the category are analyzed by our Design Department.
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 75 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Mesh of roof : 120 x 50 mm
Number of horizontal wires / side panels: 18
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 100 x 160 mm
Label holder: A5 format
Options:
Identification plate
Brake wheels
Signage by micro-percussion
Data sheet
- Ext width
- 1195 mm
- Ext depth
- 805 mm
- Ext height
- 1720 mm
- Int width
- 1125 mm
- Int depth
- 730 mm
- Int height
- 1480 mm
Material / Coating: Electro galvanized white varnish
Service load: 500 Kg
Average weight: 75 Kg
Sides:
Mesh of side panels: 90 x 50 mm
Bottom mesh: 90 x 50 mm
Mesh of roof : 120 x 50 mm
Number of horizontal wires / side panels: 18
Number of vertical wires / side panels: 14
Base:
Material / Base coating: Metal
Height of base / floor: 210 mm
Mesh of the base: 35 x 155 mm
Wheels:
2 fixed wheels – 2 swivel wheels
Material of wheels: polypropylene
Wheel diameter: 125 mm
Plates / Label Holders:
Support of identification plate: 100 x 160 mm
Label holder: A5 format
Options:
Identification plate
Brake wheels
Signage by micro-percussion
